What does Engine Diagnostics & Repair actually mean?
When you need Engine Diagnostics & Repair, a check engine light does not have to mean a blank check. Have you ever felt that sinking feeling when that little yellow light pops on while driving down Tamiami Trail? Many Naples drivers experience this exact frustration.
As a professional vehicle service team, we see this panic daily. The Powertrain Control Module simply noticed a reading outside its expected range. It stored a diagnostic trouble code to tell you where to start looking. That is exactly the kind of no-guesswork approach behind our family-owned auto repair in Naples.
Start looking, not stop looking.
That distinction is the whole job.
The Diagnostic Process at Pinto’s Auto Repair

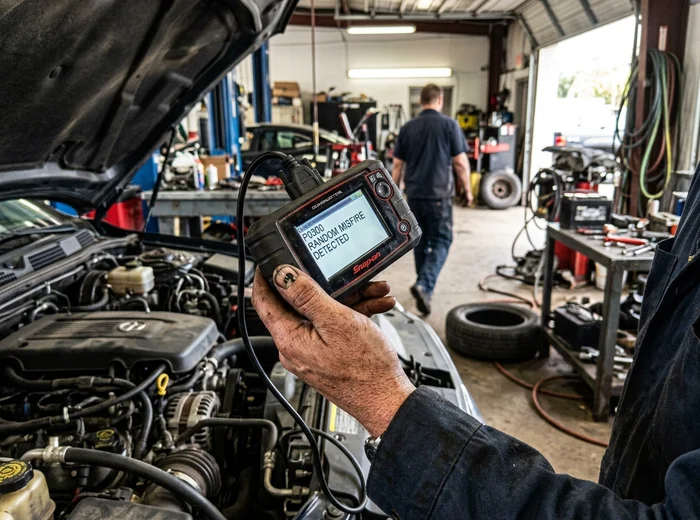

We begin with a Snap-on OBD-II code scanner and pull every stored code. Freeze-frame data then records what the engine was doing the moment the fault occurred. Live data shows us exactly what the engine is doing right now.
Our ASE-certified mechanics analyze engine temperature, fuel trim, RPM, and load at the time of the fault. These specific details often say more than the code number itself. For example, a lean condition appearing only at idle points somewhere very different from one appearing under load.

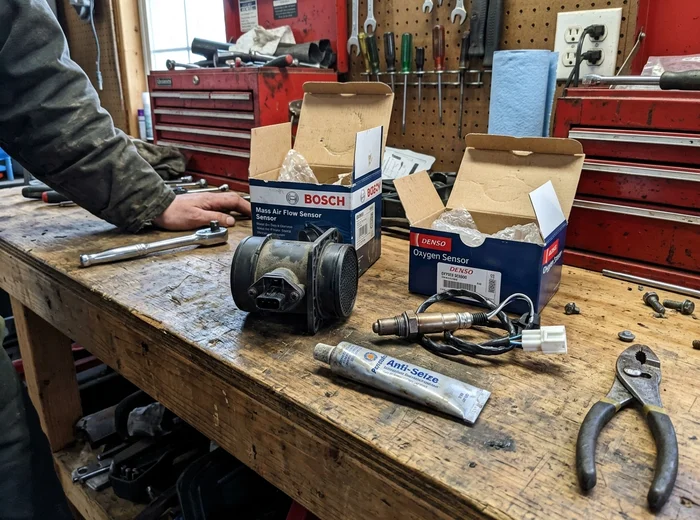

From there, the real testing begins. If the code implicates the mass airflow sensor, checking the actual readings against expected values prevents replacing it on the strength of a code alone.
Our comprehensive testing includes:

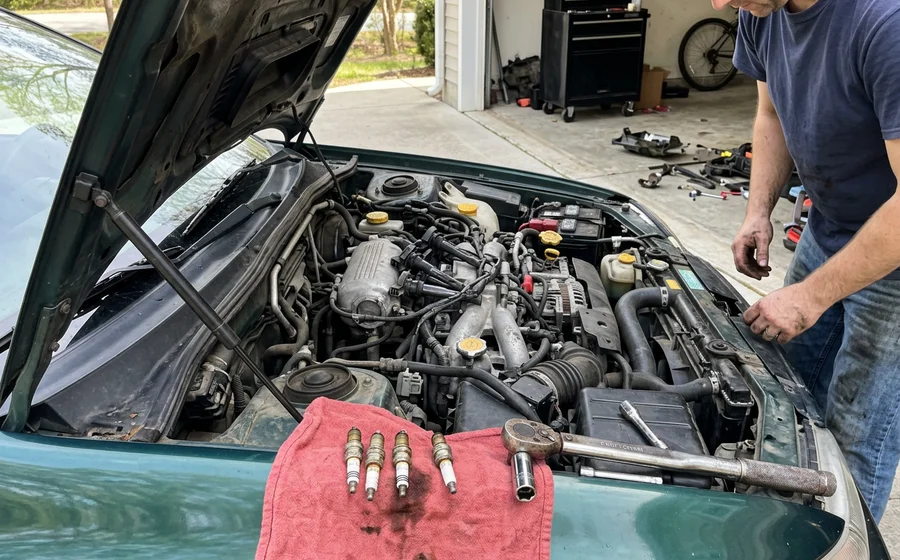

- Misfire tracing: Checking spark plugs, ignition coils, and fuel injectors.

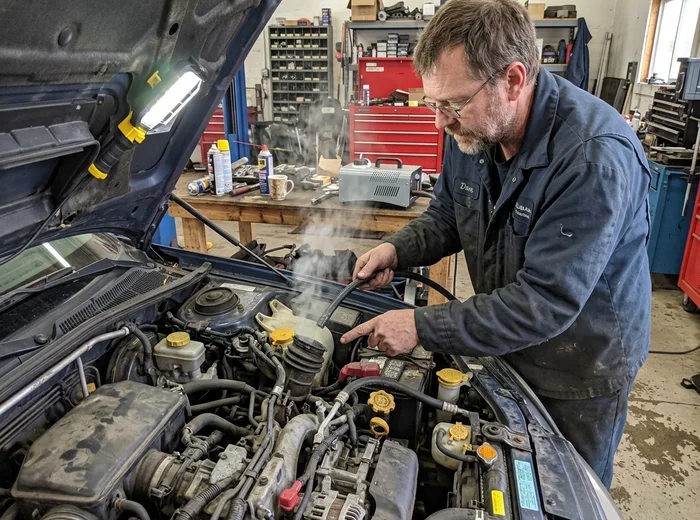

- Vacuum leak detection: Running a pressurized smoke test to find hidden cracks.
- Exhaust system verification: Checking for exhaust leaks upstream before discussing expensive replacements.
We make sure to verify sensor behavior if a code like P0420 names the catalytic converter. According to recent 2026 data from RepairPal, a new catalytic converter in Florida can cost upwards of $2,400. Checking for simple exhaust leaks upstream saves you from buying a converter you do not need.
This verification is the exact step most shops skip. Skipping this step is the reason people end up paying for three parts to fix one problem.
Clear Translation and Upfront Pricing
Then the translation happens. You get told exactly what failed, why it failed, and what happens if you leave it another few months.
Our advisors explain things in plain English first and use the technical term second. Fuel injectors, ignition coils, the timing belt, or an O2 sensor will make complete sense to you before you approve anything.
We keep our diagnostic fee between $90 and $150, depending on how difficult the fault is to reproduce. This initial fee comes completely off the repair bill if you have us do the work.
Common engine problems we solve
We handle a wide variety of daily driving complaints. The intense Naples heat and stop-and-go traffic can accelerate wear on vital engine components.
| Common OBD-II Code | What It Means | Common Culprit |
|---|---|---|
| P0440 / P0455 | Evaporative Emission System Leak | Cracked fuel cap seal or vapor hose |
| P0300 | Random/Multiple Cylinder Misfire | Worn spark plugs or bad ignition coils |
| P0171 | System Too Lean | Dirty mass airflow sensor or vacuum leak |
The light is on but the car feels fine. This scenario is very common. An evaporative emissions fault, a lazy oxygen sensor, or a loose fuel cap often triggers this warning.
Our technicians find that the hot Florida sun frequently dries out the rubber seal on gas caps, throwing a P0455 code. It is always worth diagnosing, but it is rarely an immediate emergency.
Rough idle, hesitation, or a flashing light. This combination almost always indicates a misfire. A flashing check engine light means the misfire is severe enough to risk melting your catalytic converter.
We trace these severe misfires down to a few usual suspects:

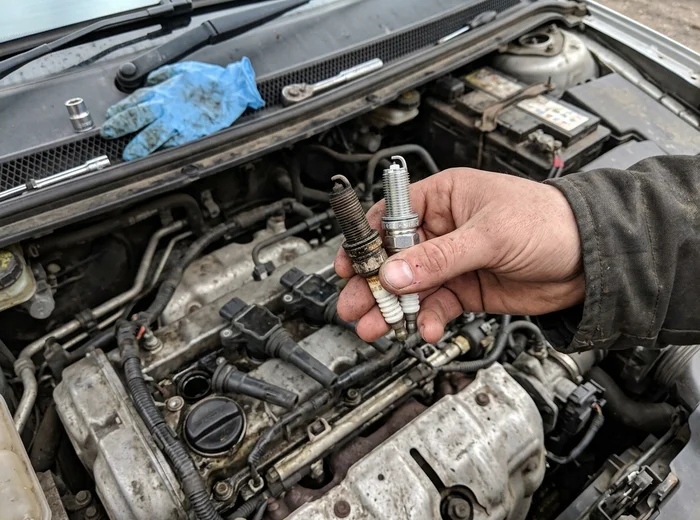

- Fouled spark plugs
- Weak ignition coils
- Clogged fuel injectors
- Hidden vacuum leaks
Hard starting or stalling. Fuel delivery issues, faulty ignition parts, or a coolant temperature sensor feeding bad data to the computer cause these frustrating stalls. Live-data testing separates these systems quickly.
Pro Tip: Never keep cranking a stalling car for more than 10 seconds. You risk burning out the starter motor and draining the battery completely.
A failing crankshaft position sensor is a frequent hidden culprit that a basic scan tool might miss completely.
Poor fuel economy with no obvious symptom. You will usually find a sensor drifting out of range rather than failing outright. Fuel trim data makes this subtle drift visible where a simple code read does not. Degraded oil and a clogged air filter quietly cost you mileage too, which is why a scan often ends with a look at your oil change and maintenance history.
Identifying these small deviations early keeps your gas budget intact during daily commutes.
Why root-cause diagnosis saves money
The cheapest possible service is a free code read at a parts counter. The most expensive outcome is a series of parts bought on the strength of that single read.
Between those two extremes sits an hour of proper testing. This dedicated hour is almost always the lowest total cost path to a reliable vehicle.
According to the CarMD 2026 Vehicle Health Index, the average check engine light repair cost in the US hit a record $554 last year. Guessing with parts quickly pushes that bill much higher.
To avoid these rising costs, mechanical confirmation remains our top priority:
- Testing instead of guessing: Proving a component has failed before removing it saves money.
- Fixing the actual root cause: A $300 mass airflow sensor code is often just a $15 cracked vacuum hose.
- Protecting your budget: ASE-certified technicians at our shop prevent you from paying for unneeded parts.
We handle import and domestic vehicle repair alike, ensuring every single finding turns into a verified solution rather than an expensive experiment. Mechanical confirmation is the only way to turn a mystery into a reliable repair estimate.
Our goal is keeping Naples families safe on the road without unnecessary expenses. Your vehicle requires precise care, and accurate testing delivers exactly that.
Give Pinto’s Auto Repair a call today to schedule your comprehensive Engine Diagnostics & Repair.
